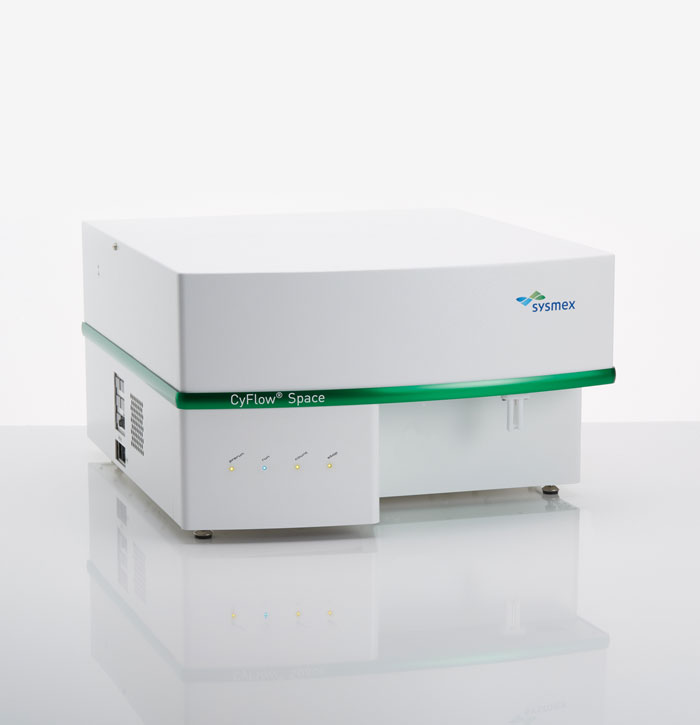

CyFlow Space

Add to wishlist
Category:

The CyFlow Space is a high-performance multi-laser flow cytometer, which offers the most flexible and reliable features for routine and research work. The advanced flow cytometry technology of the CyFlow Space has been designed to cover a wide range of applications.

CyFlow Space

Benchtop flow cytometer designed for cell and particle analysis and absolute counting. It can detect up to 13 colours, 2x FSC and 1x SSC channels. It is suited to a wide variety of applications, with its FloMax software.

Multiple applications availability

  • Fluorescence excitation by one to five light sources covering a range from ultra-violet to red excitation lines. Analysis of up to 13 fluorescence parameters and three physical light scattering parameters from near UV to infra-red light.
  • Analysis of cell and particle concentration by True Volumetric Absolute Counting (TVAC).
  • Fixed standard configurations and flexible customised configurations tailored to the user´s requirement.
  • Walk-away automation by sample auto-loading from 96- and 384-well plates.
  • Configurations with up to 13 fluorescence parameters and three physical light scattering parameters.
  • Choice of lasers with 365, 375, 405, 488, 532, 561, 594, 638, 640 nm
  • Maximum acquisition rate of up to 25,000 signals/s
  • Scatter particle size: 0.1 – 100 µm
  • Fluorescence sensitivity: ≤ 100 MESF (FITC) | ≤ 50 MESF (PE)
  • True Volumetric Absolute Counting (TVAC)

Features & Benefits

Multiple applications availability

  • Fluorescence excitation by one to five light sources covering a range from ultra-violet to red excitation lines. Analysis of up to 13 fluorescence parameters and three physical light scattering parameters from near UV to infra-red light.
  • Analysis of cell and particle concentration by True Volumetric Absolute Counting (TVAC).
  • Fixed standard configurations and flexible customised configurations tailored to the user´s requirement.
  • Walk-away automation by sample auto-loading from 96- and 384-well plates.
Specifications
  • Configurations with up to 13 fluorescence parameters and three physical light scattering parameters.
  • Choice of lasers with 365, 375, 405, 488, 532, 561, 594, 638, 640 nm
  • Maximum acquisition rate of up to 25,000 signals/s
  • Scatter particle size: 0.1 – 100 µm
  • Fluorescence sensitivity: ≤ 100 MESF (FITC) | ≤ 50 MESF (PE)
  • True Volumetric Absolute Counting (TVAC)
