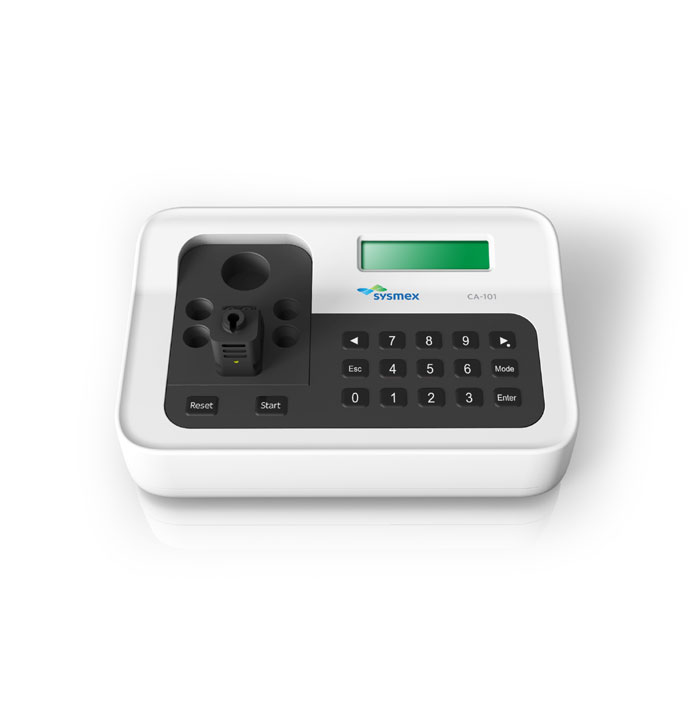

The Sysmex CA-101 analyser is your straight-forward, compact semi-automated coagulation system designed to simplify coagulation testing; making it more standardised and reproducible. Together with the same high-quality reagents used on the fully automated coagulation analysers, it provides a reliable and affordable solution for small testing facilities.

CA-101

Small, easy to-handle single-channel semi-automated coagulation analyser, utilising photo-optical turbodensitometric detection principle for analysing routine clotting tests such as PT, APTT, TT, Fbg and single factor.

The Sysmex CA-104 analyser offers an economical, convenient, safe and secure, semi-automated coagulation analyser to standardise your essential haemostasis testing.

Economical

  • Utilises half-volume of plasma and reagent as compared to manual tilt-tube method.
  • Single cuvette testing.

Convenient

  • Simple operation.
  • Easy-to-use pre-programmed methods & on-screen prompts.
  • Automatic calculation of results.

Safe and secure

  • Built-in pre-incubation timer.
  • Auto-start and timing of measuring process.
  • Temperature controlled incubation block for reagents and samples.
  • Calibration curves stored onboard.
  • PT: Dade Innovin, Thromborel S
  • APTT: Dade Actin, Dade Actin FS, Dade Actin FSL, Pathromtin SL
  • Fibrinogen: Multifibren U
  • Thrombin Time: Test Thrombin, Thromboclotin
  • Factor Deficiency: Factor II, V, VII, VIII, IX, X, XI, XII
Detection principles Clotting: turbodensitometric photo-optical measuring principle
Detection channel/method 1 LED with wavelength 870 nm for clotting assay
Parameters 1 simultaneous analysis parameter
Sampling Manual pipetting, auto-start function
Reagent holder 1 position at 37°C
Reference curves Manual input of reference curve (up to nine points)
Printer Connection to optional external thermal printer with RS 232C interface
Dimensions (WxHxD)/weights 205 x 60 x 130 mm, 0.65 kg (without AC adaptor)
null

CA-101 brochure

Download Here »

Features & Benefits

The Sysmex CA-104 analyser offers an economical, convenient, safe and secure, semi-automated coagulation analyser to standardise your essential haemostasis testing.

Economical

  • Utilises half-volume of plasma and reagent as compared to manual tilt-tube method.
  • Single cuvette testing.

Convenient

  • Simple operation.
  • Easy-to-use pre-programmed methods & on-screen prompts.
  • Automatic calculation of results.

Safe and secure

  • Built-in pre-incubation timer.
  • Auto-start and timing of measuring process.
  • Temperature controlled incubation block for reagents and samples.
  • Calibration curves stored onboard.
Assay
  • PT: Dade Innovin, Thromborel S
  • APTT: Dade Actin, Dade Actin FS, Dade Actin FSL, Pathromtin SL
  • Fibrinogen: Multifibren U
  • Thrombin Time: Test Thrombin, Thromboclotin
  • Factor Deficiency: Factor II, V, VII, VIII, IX, X, XI, XII
Specifications
Detection principles Clotting: turbodensitometric photo-optical measuring principle
Detection channel/method 1 LED with wavelength 870 nm for clotting assay
Parameters 1 simultaneous analysis parameter
Sampling Manual pipetting, auto-start function
Reagent holder 1 position at 37°C
Reference curves Manual input of reference curve (up to nine points)
Printer Connection to optional external thermal printer with RS 232C interface
Dimensions (WxHxD)/weights 205 x 60 x 130 mm, 0.65 kg (without AC adaptor)
