Genedrive System

Add to wishlist

An innovative, easy-to-use platform that brings molecular diagnostics to decentralised laboratories.

Genedrive System

Molecular Diagnostics at the Point of Need

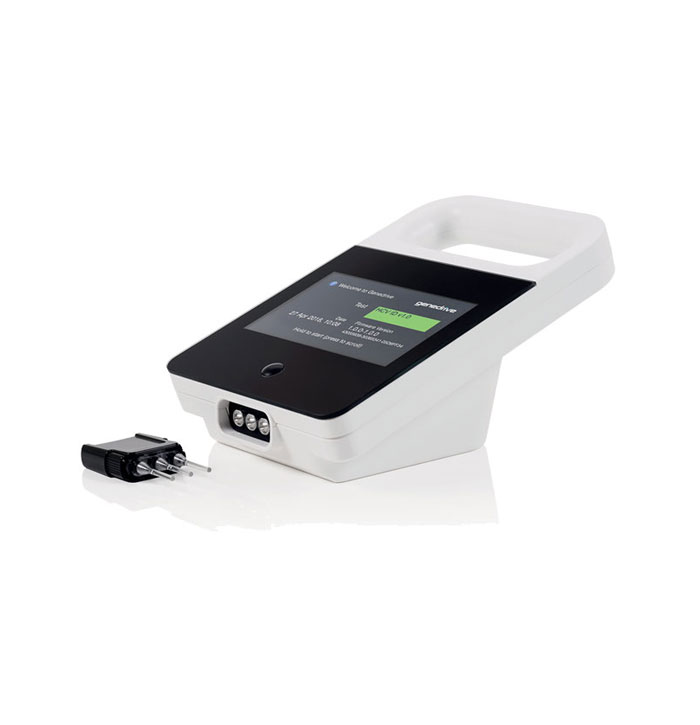

Genedrive is a patented small portable Polymerase Chain Reaction (PCR) platform which enables rapid nucleic acid amplification from plasma samples. With minimal hands on time and single button operation, it provides qualitative diagnostic results, without the need for specialist knowledge or data interpretation. With no manual calibration or maintenance required,Genedrive is an ideal solution for low throughput, decentralised laboratories

  • Affordable platform facilitates point-of-need testing
  • Easy to use single button operation with simple and intuitive software
  • Sample to results in 90 mins*
  • No manual calibration or maintenance required
  • Genedrive Connect mobile app for wireless data management

*Sample test results turnaround time depends on the kit used

Method PCR with post-amplification melt curve analysis
User Interface Proprietary graphical user interface. Single button operation
On Board Result Storage Up to 999 results
Weight 600g
Power Supply
  • Input: 100-240V 1.2A 50/60Hz AC
  • Output: 12V 8.33A DC
Operating Temperature 5-40ºC, humidity under 85% non-condensing
Connectivity Bluetooth wireless enabled technology
Printer Compatible with Dymo 450 label printer via USB (optional)
+ Features & Benefits
  • Affordable platform facilitates point-of-need testing
  • Easy to use single button operation with simple and intuitive software
  • Sample to results in 90 mins*
  • No manual calibration or maintenance required
  • Genedrive Connect mobile app for wireless data management

*Sample test results turnaround time depends on the kit used

+ Specifications
Method PCR with post-amplification melt curve analysis
User Interface Proprietary graphical user interface. Single button operation
On Board Result Storage Up to 999 results
Weight 600g
Power Supply
  • Input: 100-240V 1.2A 50/60Hz AC
  • Output: 12V 8.33A DC
Operating Temperature 5-40ºC, humidity under 85% non-condensing
Connectivity Bluetooth wireless enabled technology
Printer Compatible with Dymo 450 label printer via USB (optional)
