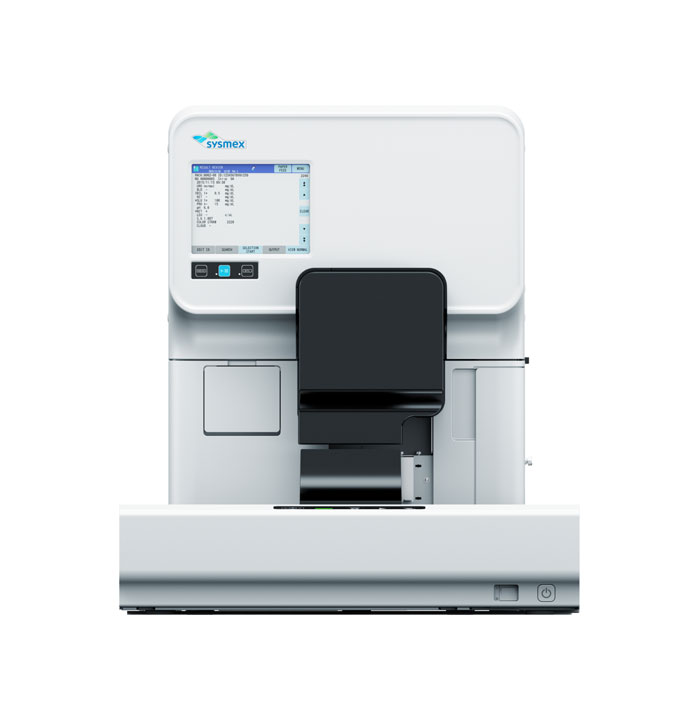

UC-3500

Add to wishlist
Category:

UC-3500

  • Colour CMOS sensor image technology

  • Fast and highly accurate measurement

  • Distinguishes red blood cells and free haemoglobin

  • Two Different types of test strips available

  • Microalbumin and creatinine test together on one strip

Fully Automated Urine Chemistry Analyser

The new UC-3500 is a fully automated urine chemistry analyser that offers novel clinical values.

The clinical urine sample is spotted onto each pad of a dedicated test strip within the analyser. The entire sequence, starting from sample aspiration, to colour comparison and final output of the results is fully automated. In addition to the five system parameters, the 11 test strip parameters include microalbumin and creatinin.

The new CMOS sensor enables the device to effortlessly distinguish abnormal colours between RBCs and haemoglobin. The refractometry measurement method enables accurate results for specific gravity and turbidity.

The fast analyser is capable of processing 276 samples per hour.



Modular Concept Solution

Modular concept: easy to combine with other members of the UN-Series (UF-4000/5000 and UD-10) to fully automate your urinalysis workflow.

With the introduction of the Urinalysis Work Area Information Management System (U-WAM), Sysmex can improve the workflow efficiency of the new urinalysis series.

Technology: Reflectance photometry and Refractometry
Aspiration volume: 0.23 mL per test strip
Minimum required volumes: 1 mL per test strip
Throughput: 276 samples/h
Parameters / test strips: Max. 16 parameters
2 types of test strips
PP/C
Measurement Principles:
  • Each test strip is scanned with a color CMOS sensor and photometry is performed
  • Automatically detect the position of the test strip pads
  • By improving the light path, cloudiness and specific gravity became less affected by turbidity
Technology: Reflectance photometry with colour CMOS sensor
Refractometry
Parameters
  • Test strip parameters
    1. Meditape UC-9A: URO, BLD, PRO, GLU, KET, BIL, NIT, LEU, pH
    2. Meditape UC-11A: URO, BLD, PRO, GLU, KET, BIL, NIT, LEU, pH, CRE, ALB
  • System Parameters
    PP/C, A/C, SG, COLOR, TURBIDITY
Reagents
  • Test strips
  • Meditape UC-9A
  • Meditape UC-11A
  • SG Calibrator (3 level)
+ Features & Benefits

Fully Automated Urine Chemistry Analyser

The new UC-3500 is a fully automated urine chemistry analyser that offers novel clinical values.

The clinical urine sample is spotted onto each pad of a dedicated test strip within the analyser. The entire sequence, starting from sample aspiration, to colour comparison and final output of the results is fully automated. In addition to the five system parameters, the 11 test strip parameters include microalbumin and creatinin.

The new CMOS sensor enables the device to effortlessly distinguish abnormal colours between RBCs and haemoglobin. The refractometry measurement method enables accurate results for specific gravity and turbidity.

The fast analyser is capable of processing 276 samples per hour.



Modular Concept Solution

Modular concept: easy to combine with other members of the UN-Series (UF-4000/5000 and UD-10) to fully automate your urinalysis workflow.

With the introduction of the Urinalysis Work Area Information Management System (U-WAM), Sysmex can improve the workflow efficiency of the new urinalysis series.

+ Specifications
Technology: Reflectance photometry and Refractometry
Aspiration volume: 0.23 mL per test strip
Minimum required volumes: 1 mL per test strip
Throughput: 276 samples/h
Parameters / test strips: Max. 16 parameters
2 types of test strips
PP/C
Measurement Principles:
  • Each test strip is scanned with a color CMOS sensor and photometry is performed
  • Automatically detect the position of the test strip pads
  • By improving the light path, cloudiness and specific gravity became less affected by turbidity
Technology: Reflectance photometry with colour CMOS sensor
Refractometry
Parameters
  • Test strip parameters
    1. Meditape UC-9A: URO, BLD, PRO, GLU, KET, BIL, NIT, LEU, pH
    2. Meditape UC-11A: URO, BLD, PRO, GLU, KET, BIL, NIT, LEU, pH, CRE, ALB
  • System Parameters
    PP/C, A/C, SG, COLOR, TURBIDITY
Reagents
  • Test strips
  • Meditape UC-9A
  • Meditape UC-11A
  • SG Calibrator (3 level)
